L Junction Boxes – Linjator

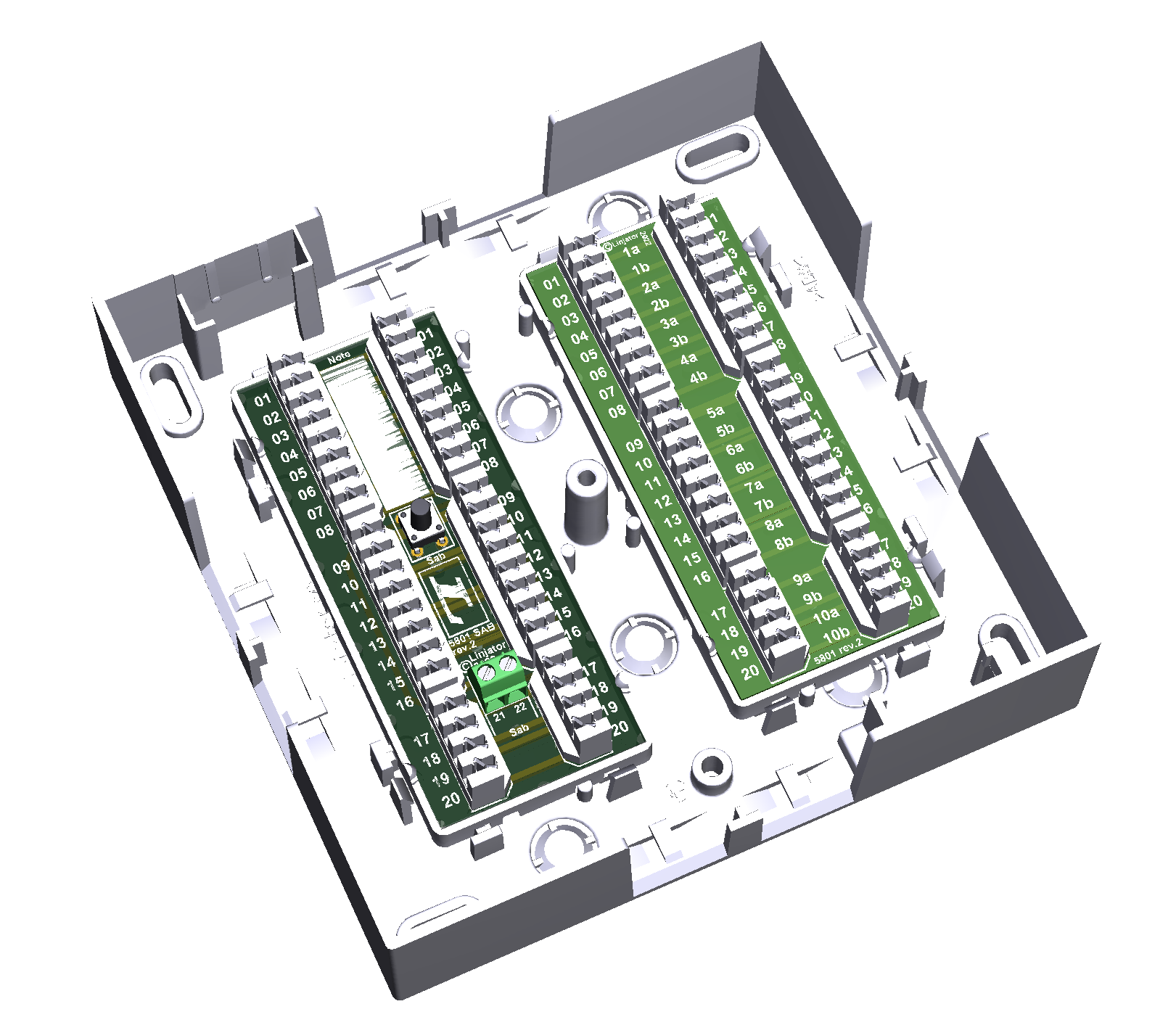

230402 – Box 2xL – 2×20-pole wide LSA Tamper

Plastic enclosure for 2xL module, white. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal. Marking 01-20. Equipped with tamper protection (breaking) on separate output. Possibility of cable entry on all sides and at the bottom. Material ABS. Place for tamper switch 260000 against cover. 120mm x 120mm x […]

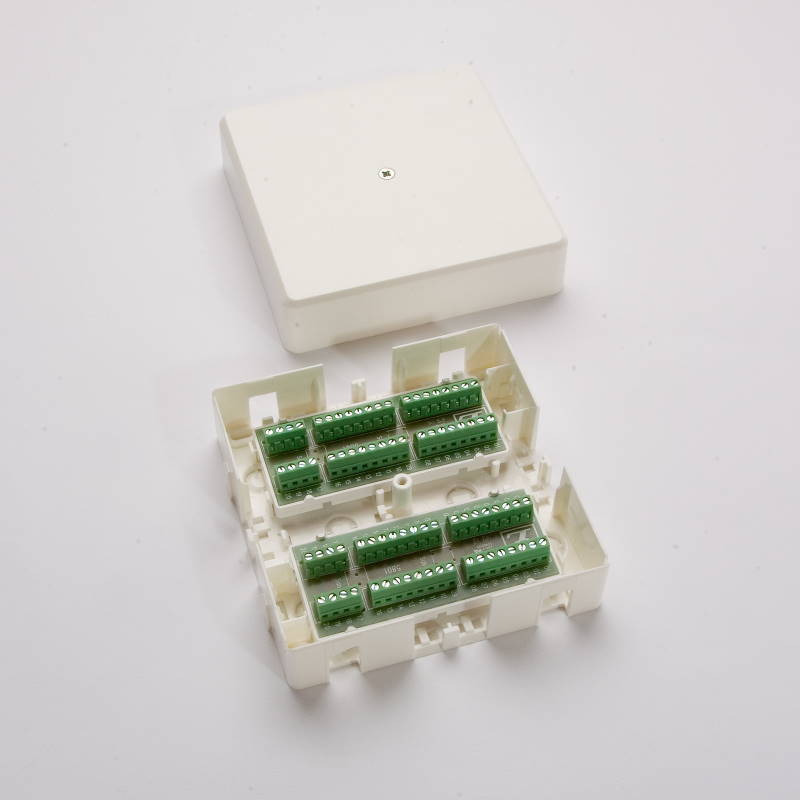

130102 – Box 2xL – 2×20-pole wide Screw 1mm²

Plastic enclosure for 2xL module, white. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20 and 01a-10b. Possibility of cable entry on all sides and at the bottom. Material ABS. Place for tamper switch 260000 against cover. 120mm x 120mm […]

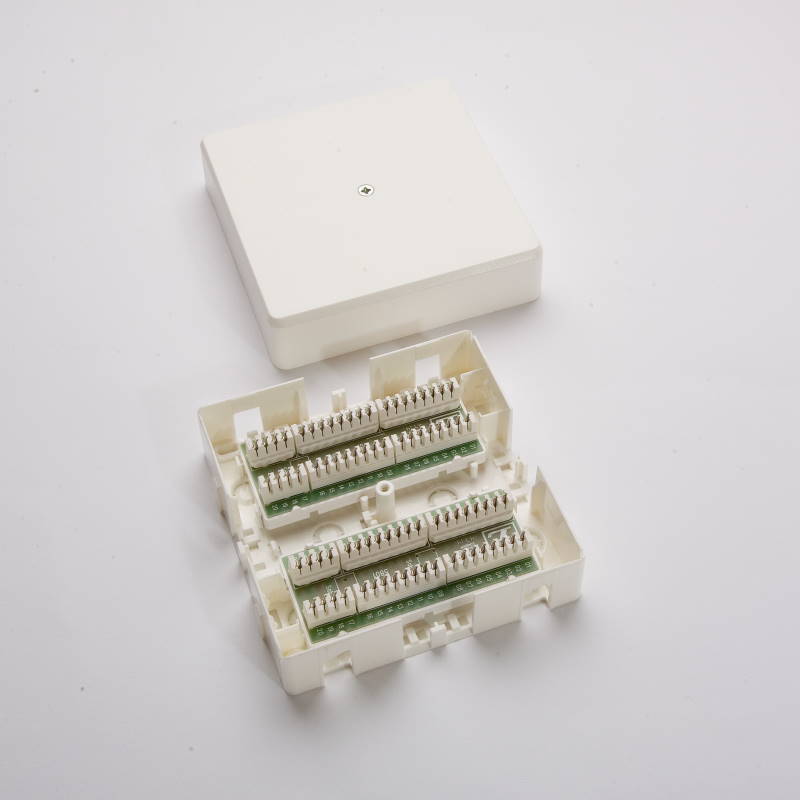

130402 – Box 2xL – 2×20-pole wide LSA

Plastic enclosure for 2xL module, white. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal. Marking 01-20 and 01a-10b. Possibility of cable entry on all sides and at the bottom. Material ABS. Place for tamper switch 260000 against cover. 120mm x 120mm x 30mm

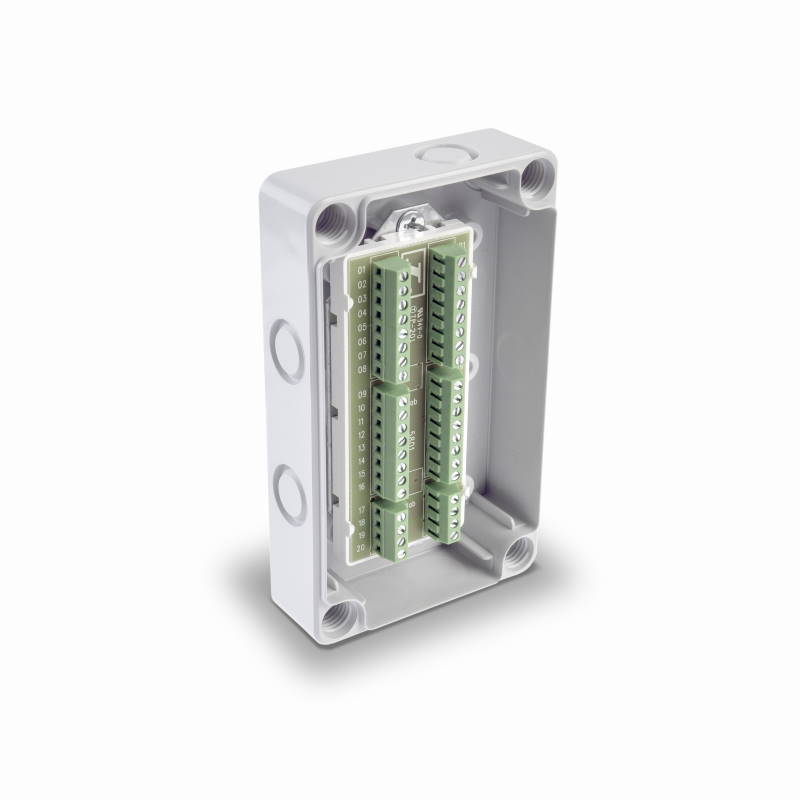

130601 – Box IP66 1xL – 1×20-pole wide Screw 1mm²

Plastic enclosure for 1xL module, gray with IP66 resistance. M16 knockouts on all sides as well as the bottom and 4 membrane seals are included. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20 and 01a-10b. 75mm x 125mm x 35mm

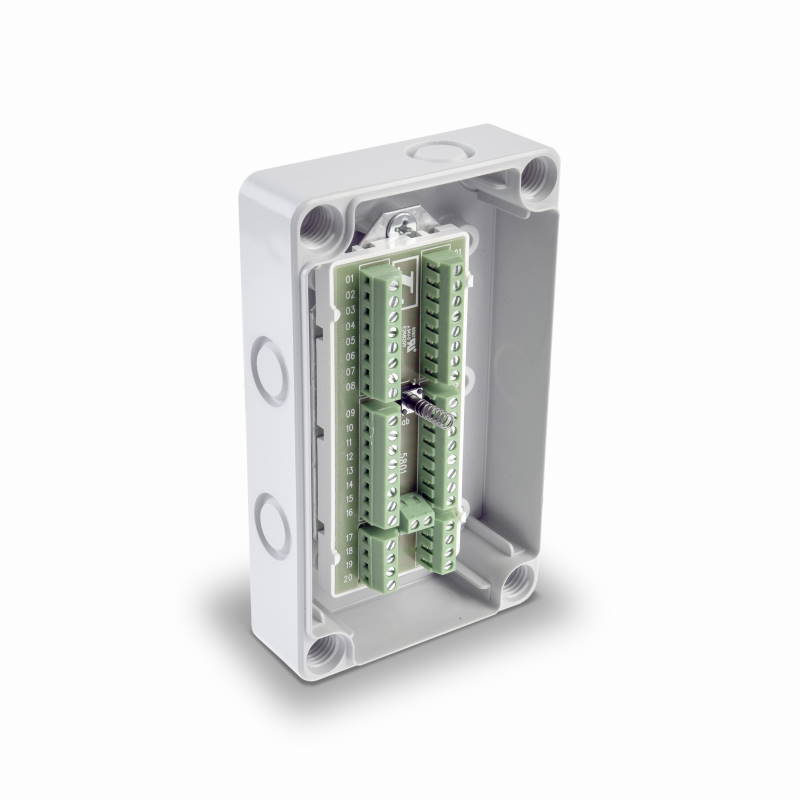

230601 – Box IP66 1xL – 1×20-pole wide Screw 1mm² Tamper

Plastic enclosure for 1xL module, gray with IP66 resistance. M16 knockouts on all sides as well as the bottom and 4 membrane seals are included. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20. Equipped with tamper protection (breaking) on separate […]

230602 – Box IP66 1xL – 1×20-pole wide LSA/Screw 1mm² Tpr

Plastic enclosure for 1xL module, gray with IP66 resistance. M16 knockouts on all sides as well as the bottom and 4 membrane seals are included. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal with transition to screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20. Equipped with […]

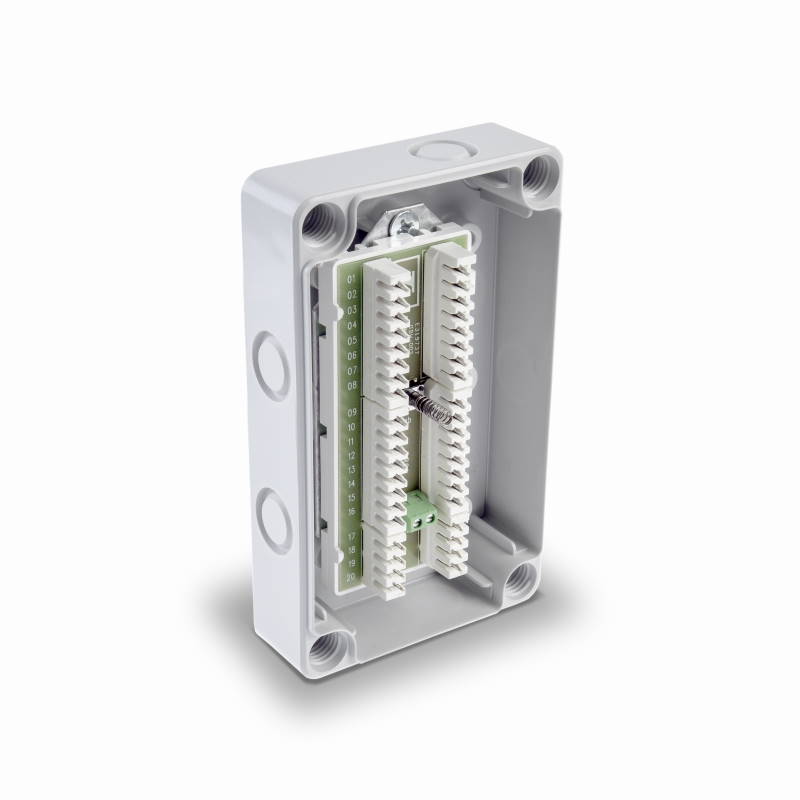

230603 – Box IP66 1xL – 1×20-pole wide LSA Tamper

Plastic enclosure for 1xL module, gray with IP66 resistance. M16 knockouts on all sides as well as the bottom and 4 membrane seals are included. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal. Marking 01-20. Equipped with tamper protection (breaking) on separate output. 75mm x 125mm x 35mm

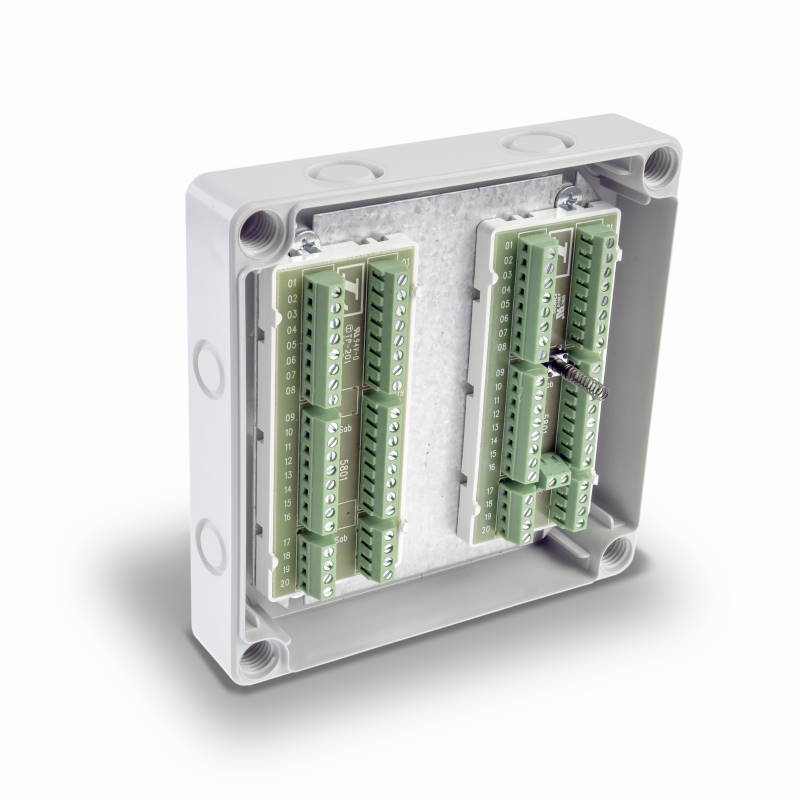

230604 – Box IP66 2xL – 2×20-pole wide Screw 1mm² Tamper

Plastic enclosure for 2xL module, gray with IP66 resistance. M16 knockouts on all sides as well as the bottom and 4 membrane seals are included. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20. Equipped with tamper protection (breaking) on […]

230605 – Box IP66 2xL – 2×20-pole wide LSA/Screw 1mm² Tpr

Plastic enclosure for 2xL module, gray with IP66 resistance. M16 knockouts on all sides as well as the bottom and 4 membrane seals are included. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal with transition to screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20. Equipped […]

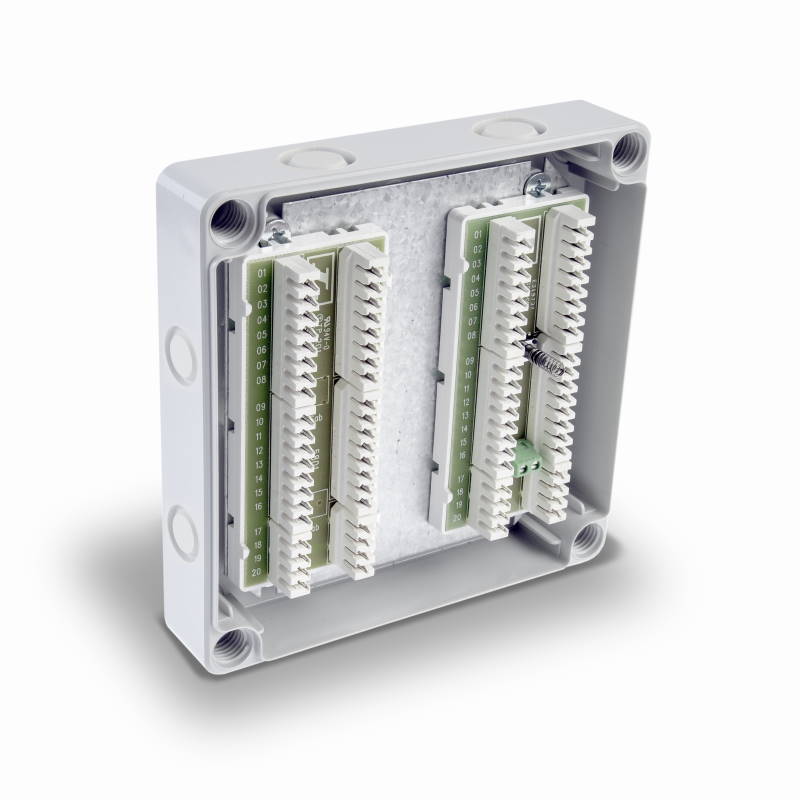

230606 – Box IP66 2xL – 2×20-pole wide LSA 1mm² Tamper

Plastic enclosure for 2xL module, gray with IP66 resistance. M16 knockouts on all sides as well as the bottom and 4 membrane seals are included. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal Marking 01-20. Equipped with tamper protection (breaking) on separate output. 125mm x 125mm x 35mm

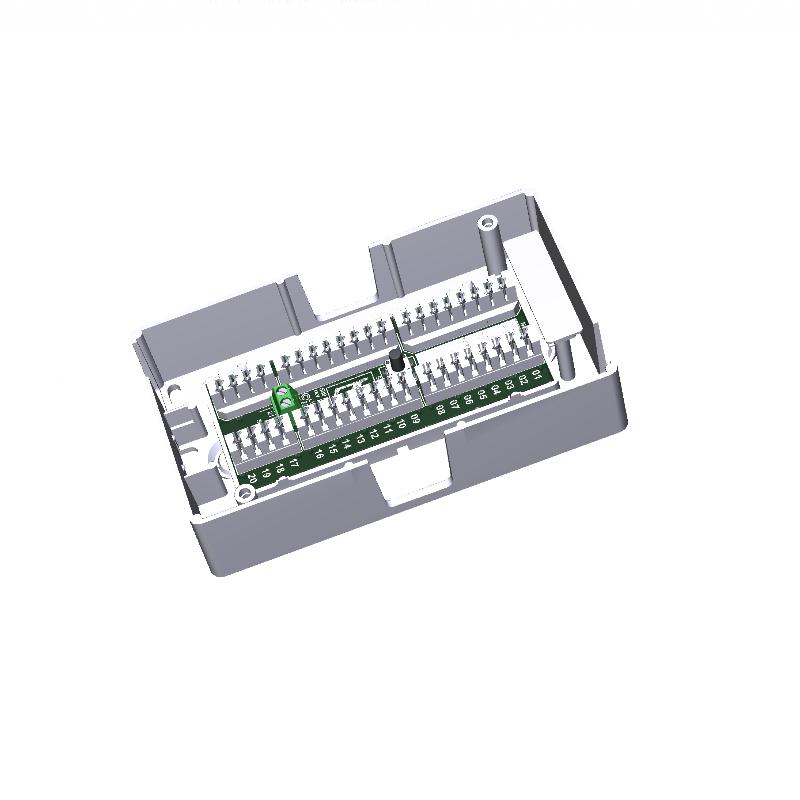

230401 – Box 1xL – 1×20-pole wide LSA Tamper

Plastic enclosure for 1xL module, white. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal. Marking 01-20 and 01a-10b. Possibility of cable entry on all sides and at the bottom. Visible signature stamp. Material ABS. Place for tamper switch 260000 against cover. 70mm x 120mm x 30mm

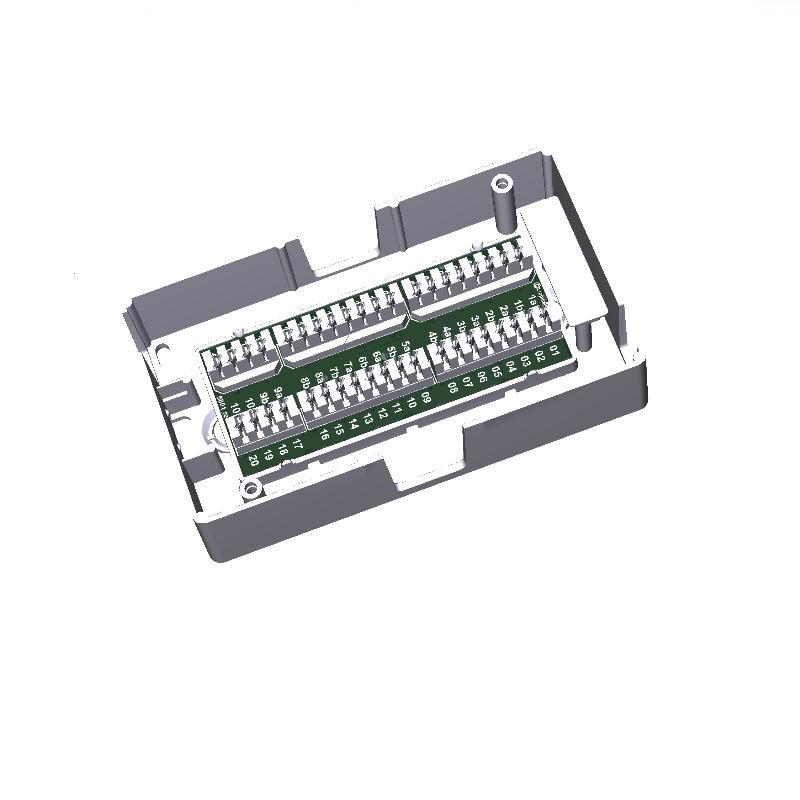

130401 – Box 1xL – 1×20-pole wide LSA

Plastic enclosure for 1xL module, white. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal. Marking 01-20 and 01a-10b. Possibility of cable entry on all sides and at the bottom. Visible signature stamp. Material ABS. Place for tamper switch 260000 against cover. 70mm x 120mm x 30mm

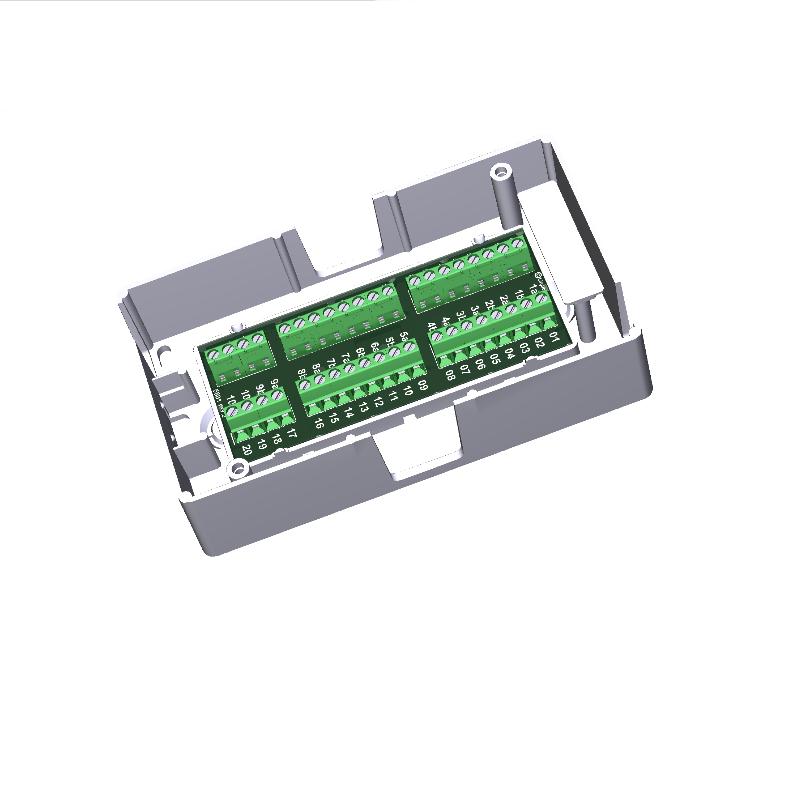

130101 – Box 1xL – 1×20-pole wide Screw 1mm²

Plastic enclosure for 1xL module, white. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20 and 01a-10b. Possibility of cable entry on all sides and at the bottom. Visible signature stamp. Material ABS. Place for tamper switch 260000 against cover. 70mm […]

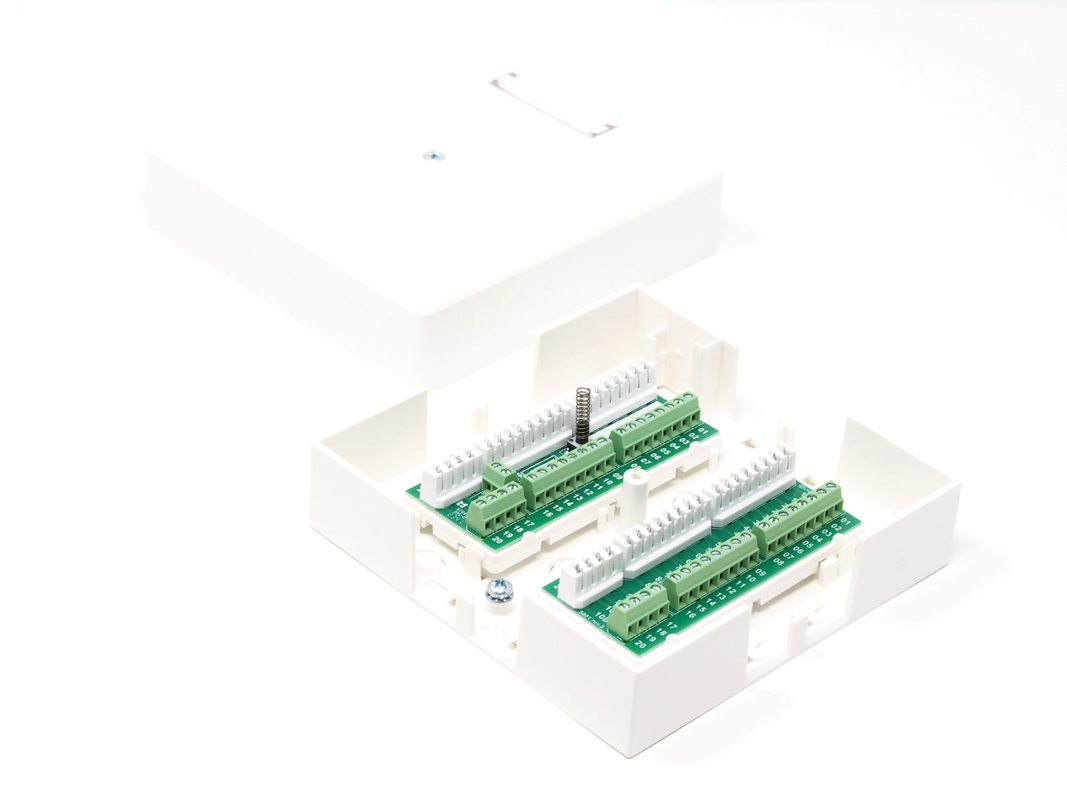

230502 – Box 2xL – 2×20-pole wide LSA/Screw 1mm² Tamper

Plastic enclosure for 2xL module, white. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal with transition to screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20. Equipped with tamper protection (breaking) on separate output. Possibility of cable entry on all sides and at the bottom. Material […]

230101 – Box 1xL – 1×20-pole wide Screw 1mm² Tamper

Plastic enclosure for 1xL module, white. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20. Equipped with tamper protection (breaking) on separate output. Possibility of cable entry on all sides and at the bottom. Visible signature stamp. Material ABS. Place for […]

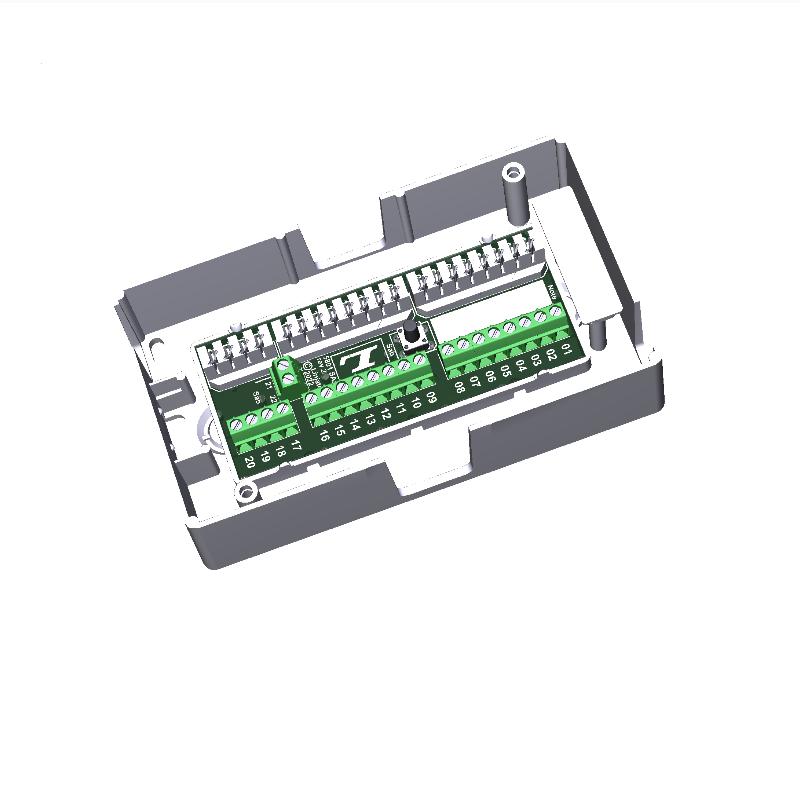

230501 – Box 1xL – 1×20-pole wide LSA/Screw 1mm² Tamper

Plastic enclosure for 1xL module, white. Equipped with Modul L 20-pole to 20-pole straight through connection. Connection via LSA terminal with transition to screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20. Equipped with tamper protection (breaking) on separate output. Possibility of cable entry on all sides and at the bottom. Visible signature […]

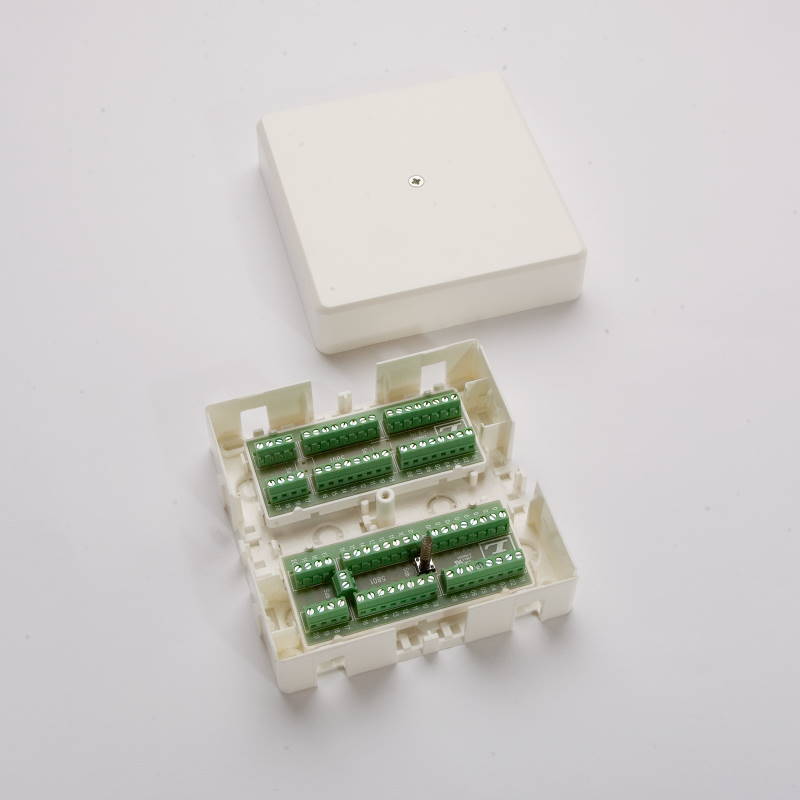

230102 – Box 2xL – 2×20-pole wide Screw 1mm² Tamper

Plastic enclosure for 2xL module, white. Equipped with 2 Modul L 20-pole to 20-pole straight through connection. Connection via screw terminal up to 1mm² with elevator-type wire protection. Marking 01-20 Equipped with tamper protection (breaking) on separate output. Possibility of cable entry on all sides and at the bottom. Material ABS. Place for tamper switch […]
